Magnetic Flux Linkage

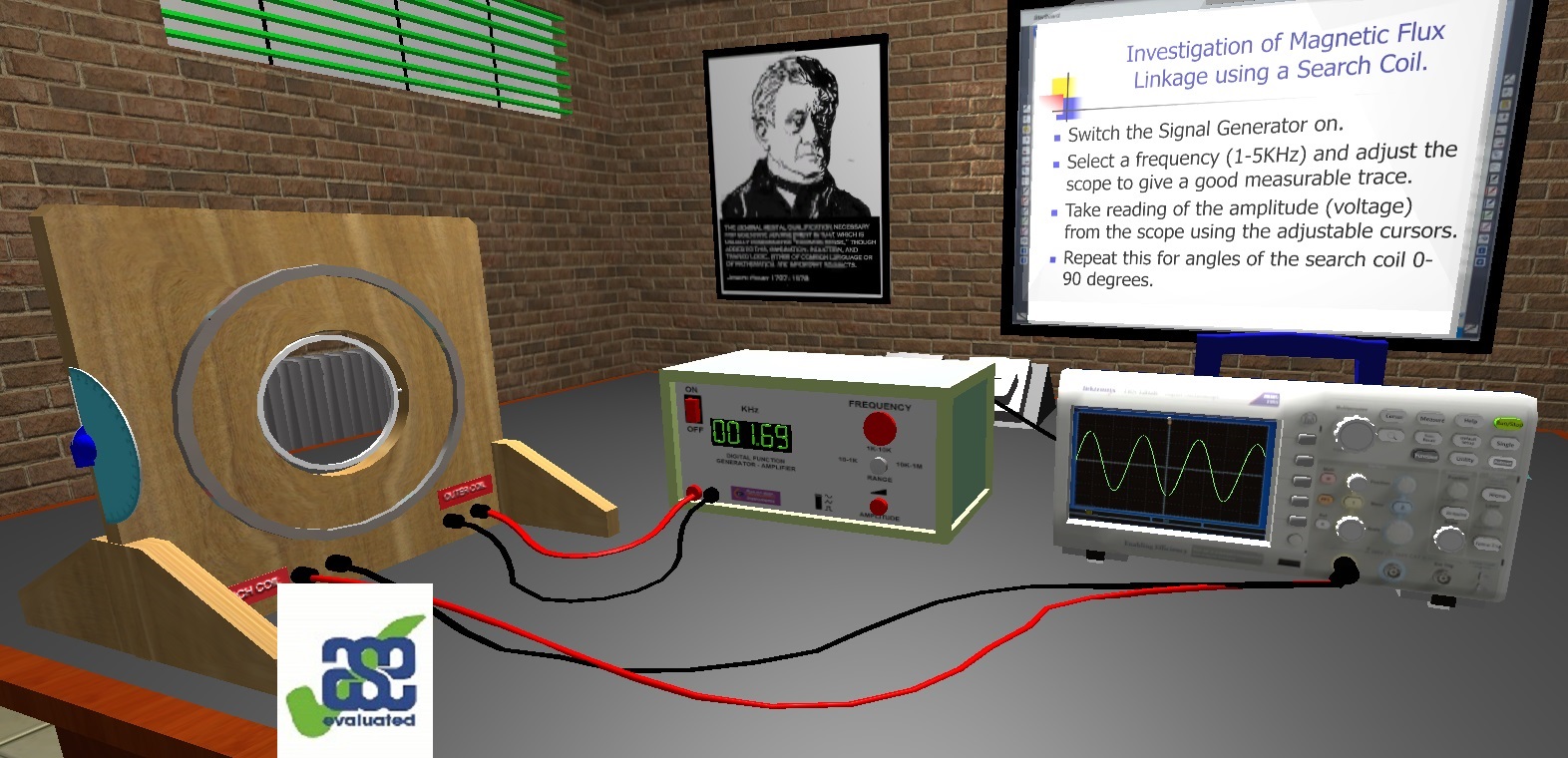

This is a teacher or student controlled, realistic 3d simulation of a flux linkage experiment using a signal generator, search coil and oscilloscope.

This experiment establishes the relationship between the induced voltage in a coil when at various angles to another coil.  It uses audio signals from a signal generator to vary the input voltage. By measuring the voltage induced in the search coilusing an oscilloscope, and varying the angle of the search coil, the relationship between the induced voltage and the angle of the search coil can be established

The user has control over the angle of the search coil, the amplitude and frequency of the signal from the signal generator, the various controls of the oscilloscope which include the amplitude sensitivity, the time frame, and the various cursor controls. The user is free to move anywhere within the laboratory in order to interact with the apparatus.
